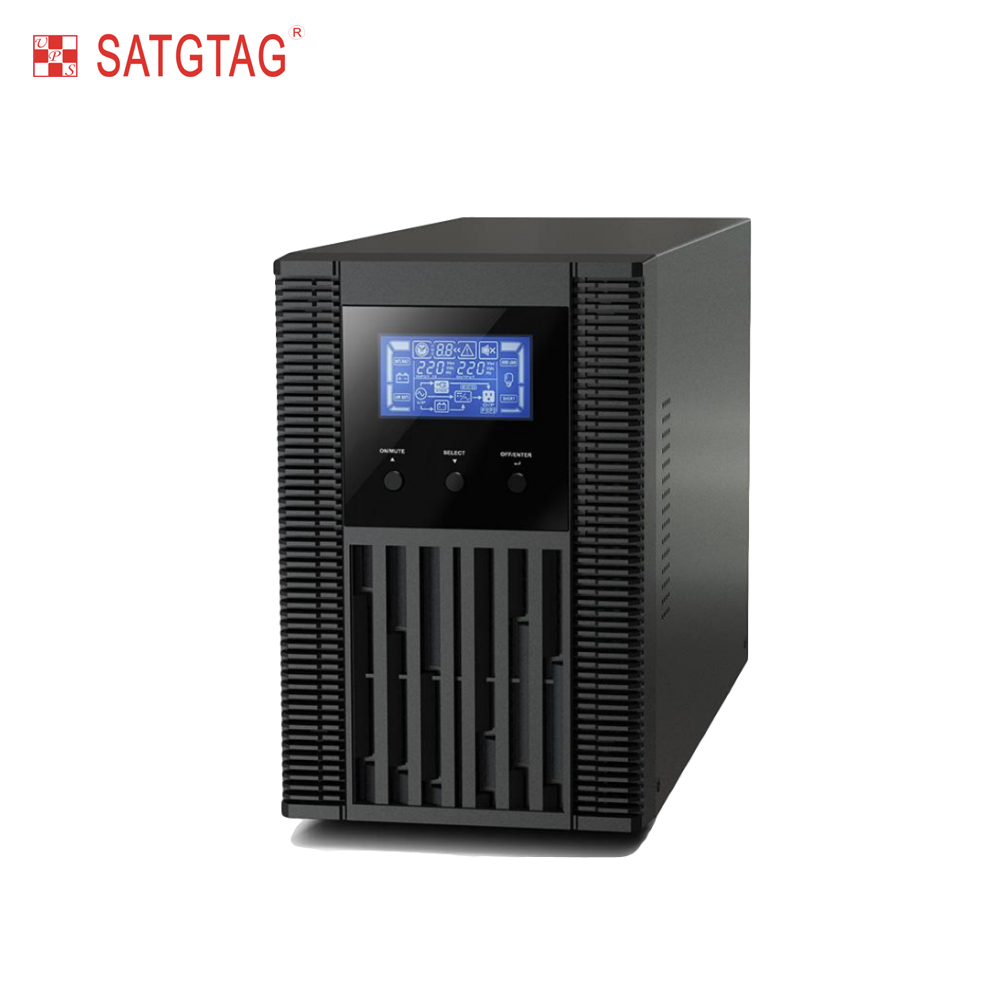

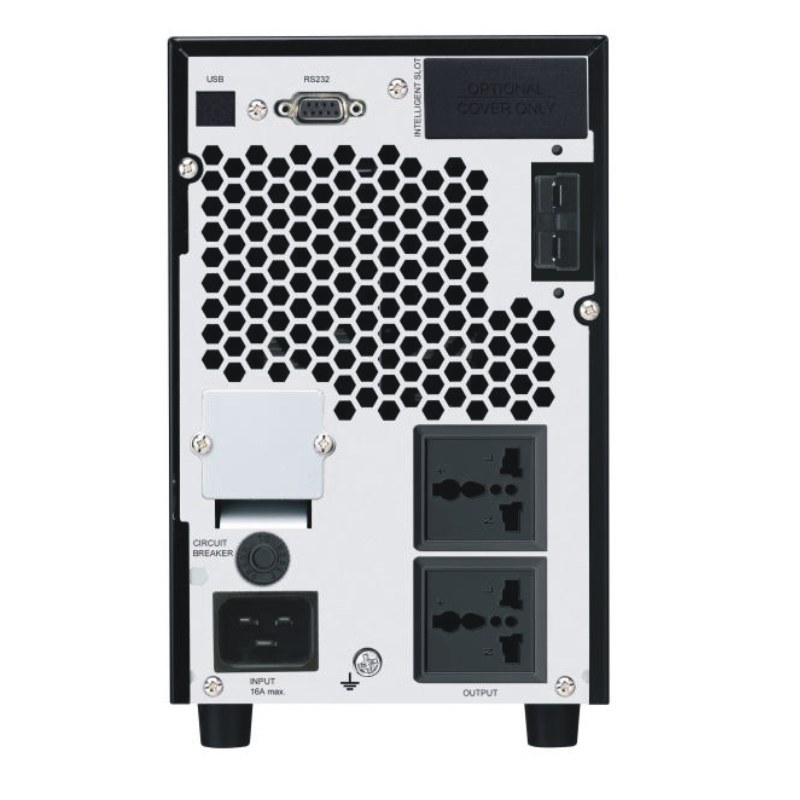

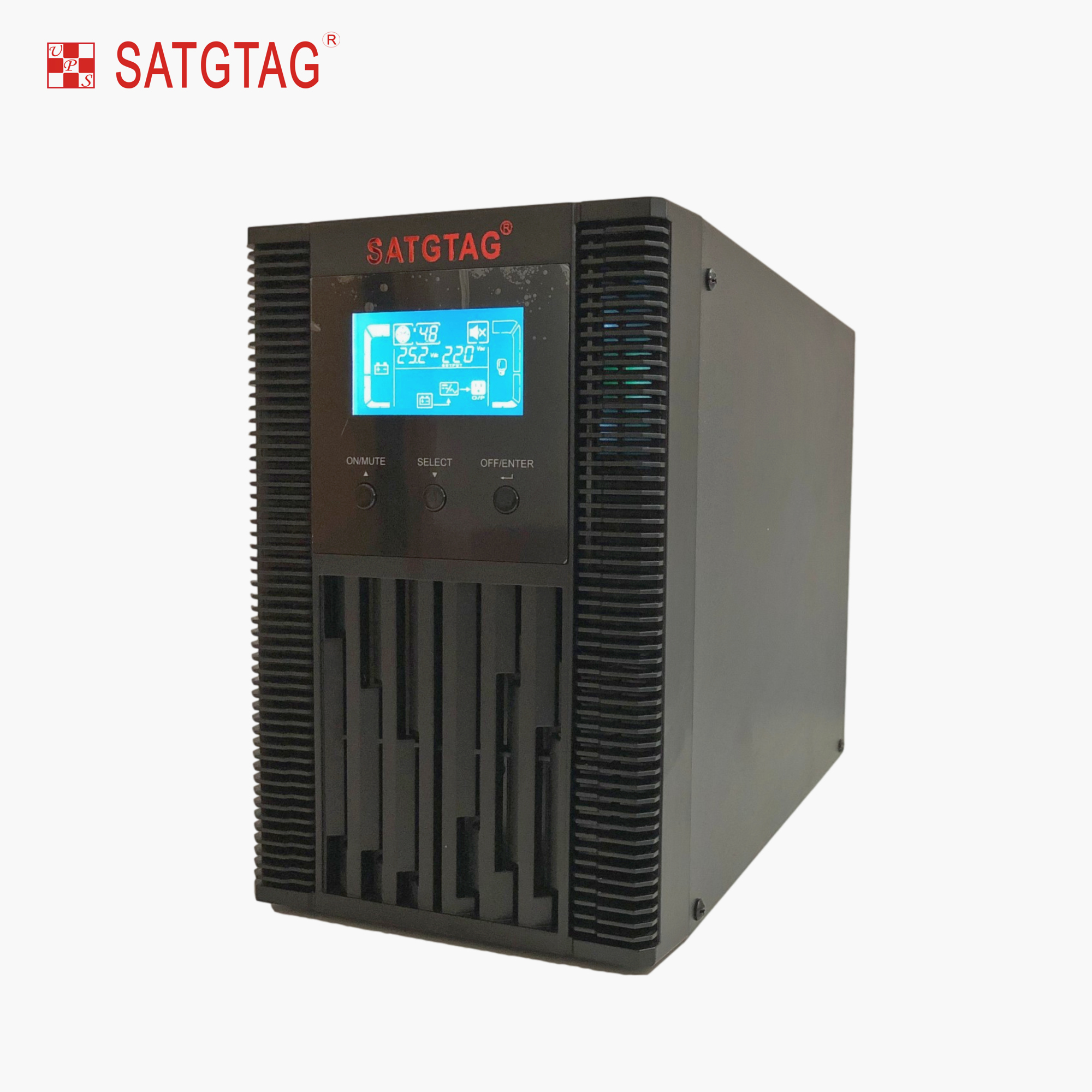

2KVA 2000VA 1600W Online ups 110v 220v external battery 72VDC Tower UPS

R12799,00

In stock

Or split into 4x interest-free
payments Learn more
Compare
Product Features
online high frequency UPS:
■True double-conversion
■Microprocessor control optimizes reliability
■Input power factor correction
■Output power factor 0.8
■Wide input voltage (110 V – 300 V)
■Converter mode available
■ECO mode for energy saving
■Generator compatible
■Charger capacity expansion to 6A for long-run models
■Smart SNMP works well with either USB or RS-232 together
■Comprehensive display allows easy monitoring and access of UPS status
Product Paramenters
MODEL
C1KS
C2KS
C3KS
PHASE
Single phase with ground
CAPACITY
1000 VA / 800 W
2000 VA / 1600 W
3000 VA / 2400 W
Nominal Voltage
100/110/115/120/127VAC or 200/208/220/230/240VAC
Input Voltage Range
 55-145 VAC or 110-300 VAC
Frequency Range
40Hz ~ 70 Hz
Power Factor
≥ 0.99 @ Nominal Voltage (100% load)
Output Voltage
100/110/115/120/127VAC or 200/208/220/230/240VAC
Voltage Regulation
± 1%
Frequency Range
(Synchronized Range)
47~ 53 Hz or 57 ~ 63 Hz
Frequency Range
(Batt. Mode)
50 Hz or 60Hz ± 0.1 Hz
Harmonic Distortion
≤ 3 % THD (Linear Load)  ≤ 6 % THD (Non-linear Load)
Transfer Time
Zero
Waveform (Batt. Mode)
Pure Sinewave
EFFICIENCY
To AC Mode
88%
89%
90%
To Battery Mode
83%
87%
88%
Battery type
 12V7AH
Quantity
3
6
8
Standard charging time
Depending on battry
max charge current
1A/2A/4A/6A
Charging voltage
41.0VDC±1%
82.0 VDC ±1%
104.0 VDC ±1%
INDICATORS
LCD
Load level, Battery level, AC mode, Battery mode,Bypass mode, and Fault indicators
ALARM
Battery Mode
Sounding every 4 seconds
Low Battery
Sounding every second
Overload
Sounding twice every second
Fault
Continously sounding
Dimension
282*145*220
379*145*220
379*145*220
Net weight(kgs)
4.6
6.8
7.4
ENVIRONMENT
Humidity
20-90 % RH @ 0- 40°C (non-condensing)
Noise Level
Less than 50dBA @ 1 Meter
MANAGEMENT
PHASE
1 phase in / 1 phase out
Smart RS-232/USB
Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
