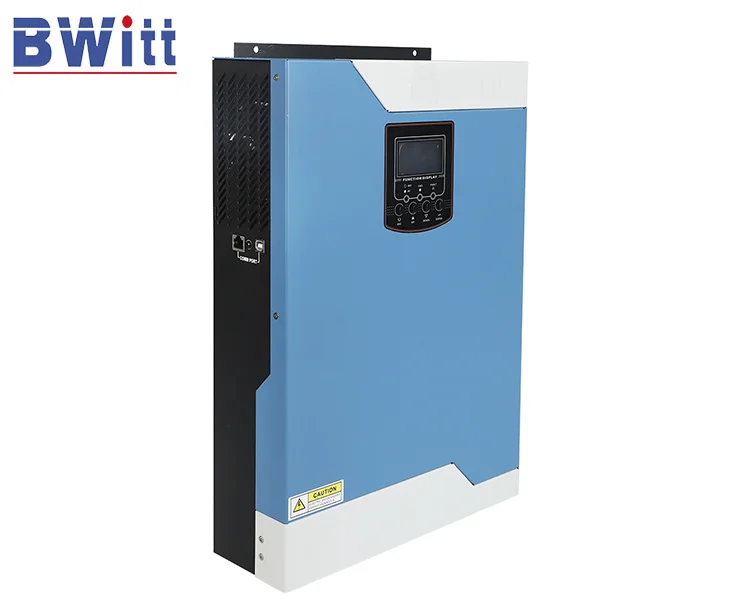

5.5KW solar hybrid inverter 12/24V DC mppt solar charger controller for MPPT solar system
R23,019
Details Images
Main Feature
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable AC/Solar Charger priority via LCD setting

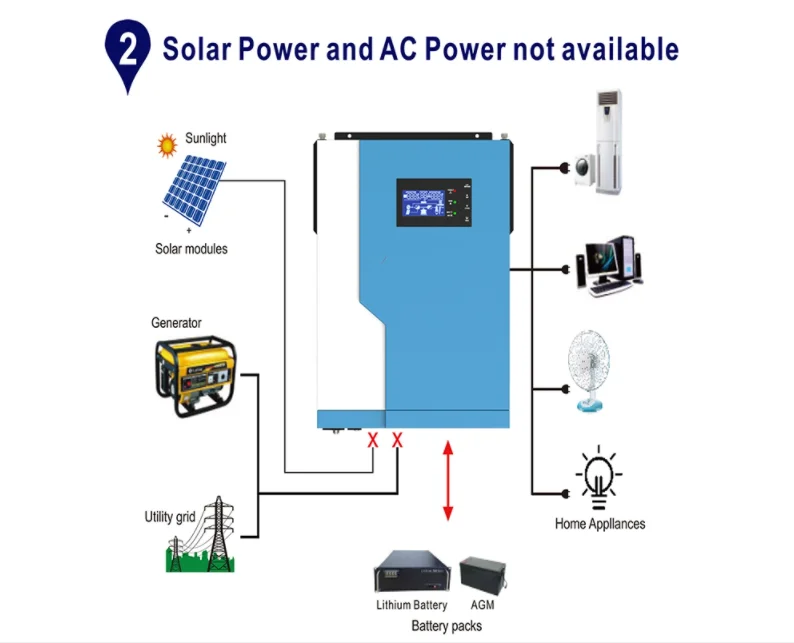

Compatible with mains voltage or generator power
Auto restart while AC is recovering
Overload/Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Additional information
| Maximum Current | 100A |
|---|---|
| Rated Voltage | 230Vac |
Additional Info
|
MODEL
|
SCG2-3.5KW
|
SCG2-5.5KW
|
||
|
RATED POWER
|
3.5KW
|
5.5KW
|
||
|
INPUT
|
||||
|
Voltage
|
230Vac
|
|||
|
Selectable Voltage Range
|
90~280Vac
|
|||
|
Frequency Range
|
42~65Hz
|
|||
|
OUTPUT
|
|
|
||
|
AC Voltage Regulation(Batt Mode)
|
230Vac±5%
|
|||
|
Surge Power
|
7000VA
|
11000VA
|
||
|
Efficiency(Peak) PV to INV
|
97%
|
|||
|
Efficieny(Peak) Battery to INV
|
94%
|
|||
|
Transfer Time
|
10ms(UPS mode)
|
|||
|
BATTERY& AC CHARGER
|
||||
|
Battery Voltage
|
24Vdc
|
48Vdc
|
||
|
Floating Charge Voltage
|
27Vdc
|
54Vdc
|
||
|
Overcharge Protection
|
33Vdc
|
63Vdc
|
||
|
Maximum Charge Current
|
100Amp
|
100Amp
|
||
|
SOLAR CHARGER
|
||||
|
Maximum PV Array Power
|
5000W
|
6000W
|
||
|
MPPT [email protected] Operating Voltage
|
120~450Vdc
|
|||
|
Maximum Charging Current
|
100Amp
|
100Amp
|
||
|
Maximum Efficiency
|
98%
|
|||
|
PHYSICAL
|
||||
|
Dimension, D*W*H(mm)
|
100*300*400
|
|||
|
Net Weight(kgs)
|
11
|
12
|
||
|
Communication interface
|
USB/RS232/GPRS/WIFI
|
|||
|
OPERATING ENVIRONMENT
|
||||
|
Humidity
|
5% to 95% relative humidity(Non condensing)
|
|||
|
Operating Temperature
|
0℃~55℃
|
|||
|
Storage Temperature
|
-15℃~60℃
|
|||
