5KVA 4000W single phase low frequency line-interactive ups power backup UPS
R29799,00
Or split into 4x interest-free
payments Learn more
payments Learn more
No interest, no fees,
4x instalments over 6 weeks
How it works
Payflex lets you get what you need now, but pay for it over four interest-free instalments. You pay 25% upfront, then three payments of 25% over the following six weeks.
1
Shop Online
and fill your cart
2
Choose Payflex at checkout
3
Get approved and
pay 25% today
with your debit
or credit card
4
Pay the remainder
over 6-weeks.
No interest.
No fees.

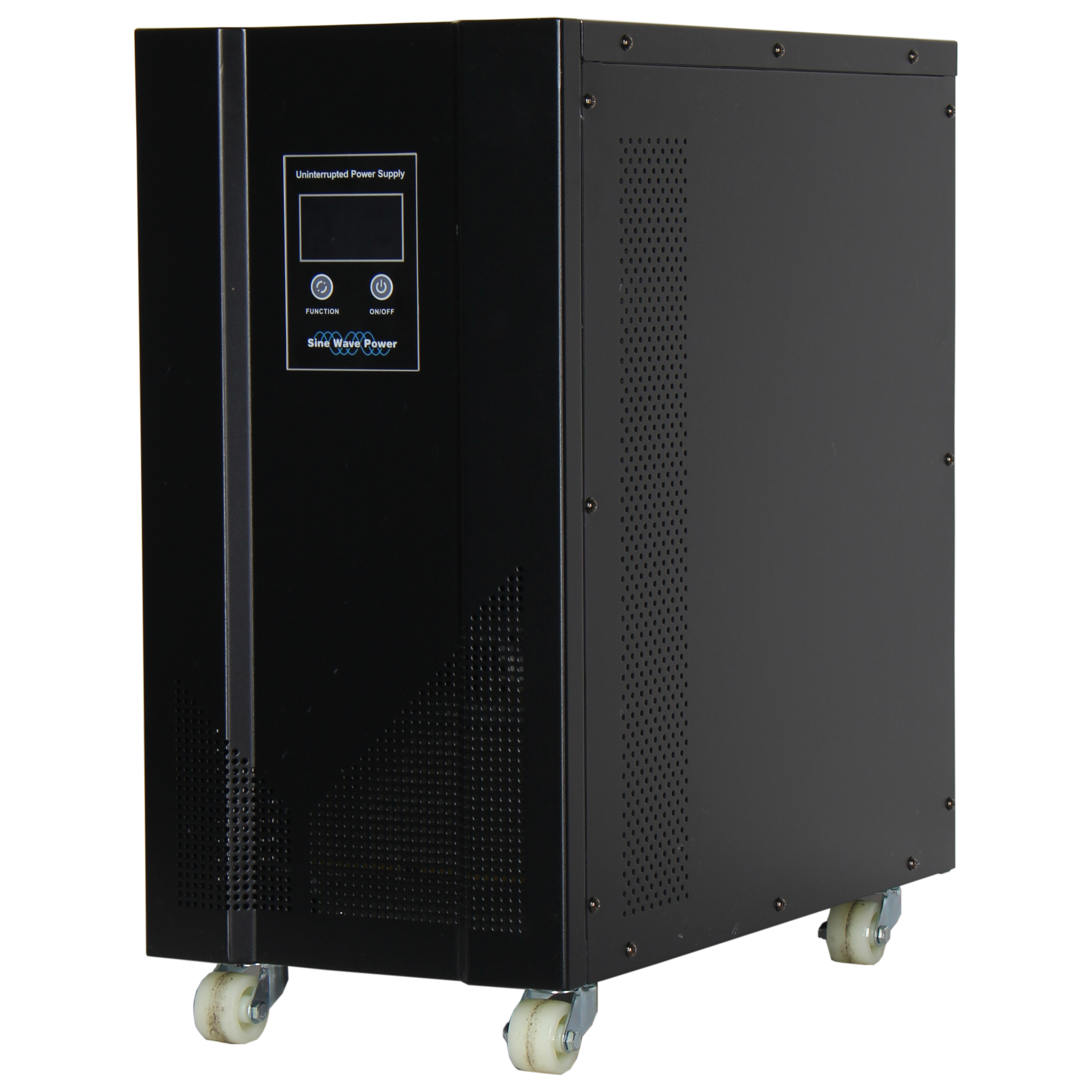

This series UPS is online interactive ups, It is small-volume, lightweight, &high efficiency. This UPS almost has no noise in grid power status, and it adopts PWM technology to inverter pure sine wave output power, suitable for capacitive, inductive &non-linear mixed loads. Its efficiency is 10% higher than other line interactive UPS; perfect protection function to avoid any error of the UPS, such as overload, short circuit, battery low voltage, wrong operation.
Main Features
* Capacity: 5KVA; ( This series capacity power can be 1kva~40kva)
* Wide input range; (165V~275V）
* Pure sine wave and AVR output;
* Pure sine wave and AVR output;
* Built-in battery; (can be customized)
* Selectable charging current based on applications;
* Compatible to mains voltage or generator power;
* Selectable charging current based on applications;
* Compatible to mains voltage or generator power;
* UPS or solar inverter working mode can be set by user;
* Smart battery charger design to optimize battery performance;
* Communication interface: RS232/USB/SNMP/Wifi; (optional)
* Smart battery charger design to optimize battery performance;
* Communication interface: RS232/USB/SNMP/Wifi; (optional)
* Stable performance, safe and reliable, long service life.
Specification
|
Model
|
GS5KVA
( this series has 1KVA~40KVA, please feel free to contact)
|
|
|
Rated Power
|
4000W
|
|
|
Power Factory
|
0.8
|
|
|
Instant power
|
3 times
|
|
|
Battery
|
Batt. Voltage
|
48Vdc
|
|
Batt. Number
|
12V：4pcs
|
|
|
Battery type
|
AGM/Lead acid/Gel battery
|
|
|
AC Input & AC output
|
Phase
|
Single （L+N+G）
|
|
Frequency
|
50/60Hz ± 10％
|
|
|
Input voltage
|
220VAC (165-275V) (L+N+G)
|
|
|
Output voltage
|
220VAC AVR output
|
|
|
AC charger
|
Charge current
|
10A standard (1A~40A customizable)
|
|
Floating charge voltage
|
58V
|
|
|
Overcharge protect voltage
|
62V
|
|
|
Invert output
|
Output voltage
|
220VAC (L+N+G) ± 1％
|
|
Frequency
|
50/60Hz ± 0.1％
|
|
|
Switch time
|
≤4ms
|
|
|
THD
|
≤ 3％(Linear load)
|
|
|
Dynamic response
|
5% (0%~100% load）
|
|
|
Crest factor
|
3:1
|
|
|
Invert efficiency
|
97% (full load)
|
|
|
Display
|
LCD
|
|
|
Alarm
|
Buzzing and LCD screen flicker
|
|
|
Protection function
|
Ac over voltage, under voltage, DC over voltage, under voltage, Overload, Output short circuit etc.
|
|
|
Overload capacity
|
120% 30s, 125% 10s, 150% 0s
|
|
|
Communication interface
|
RS232/SNMP/Wifi (extra optional function)
|
|
|
Protection class
|
IP20
|
|
|
Surge handling capability
|
10/700US,5KVA;8/20US,20KA
|
|
|
Noise dB
|
≤45db
|
|
|
Cooling mode
|
Forced ventilation
|
|
|
Ambient Temperature
|
Temperature 0-40℃, relative humidity 10%-90%, elevation<1000m
|
|
|
Size（L*W*H）mm
|
480*250*530
|
|
|
Net Weight (kg)
|
35kg
|
|
|
*Parameters are subject to change without notice.
|
||
Product Details
①LCD screen ②On/Off button ③Function button ④Cooling fan
⑤AC、DC switch ⑥Battery connection ⑦USB/RS232 communication interface
⑧Input and output connection terminals ⑨Wheels
⑧Input and output connection terminals ⑨Wheels
