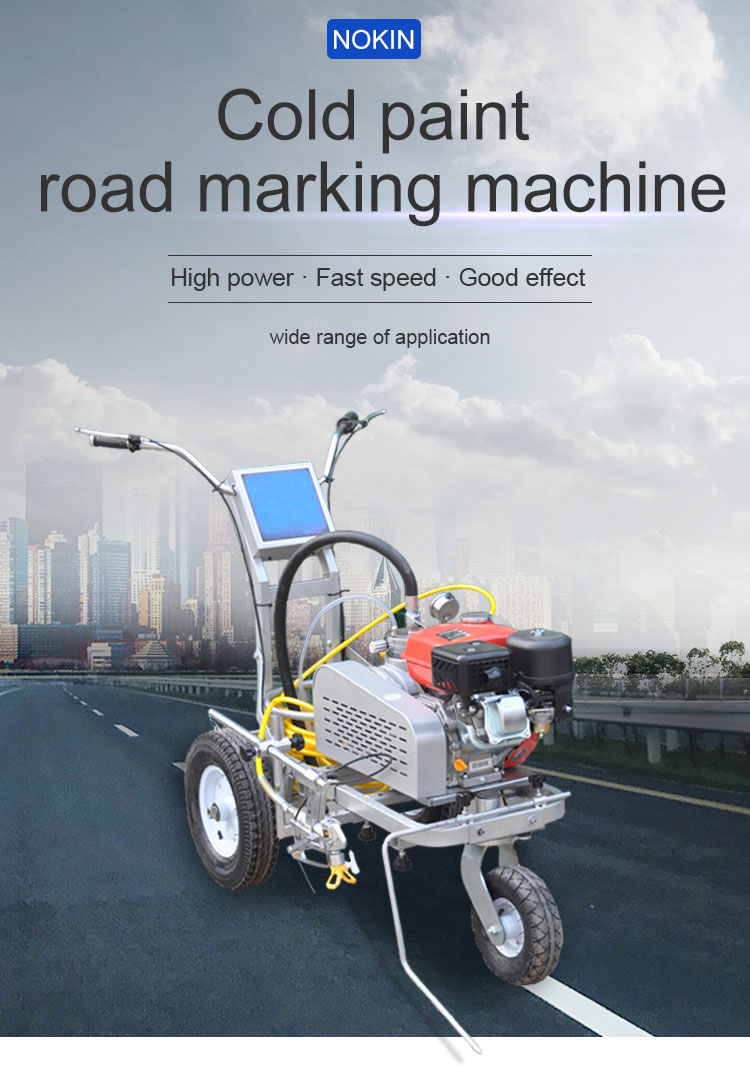

Cold Paint Road Line Marker Spray Road Marking Machine Price

R77999,00

In stock

Or split into 4x interest-free
payments Learn more
Compare

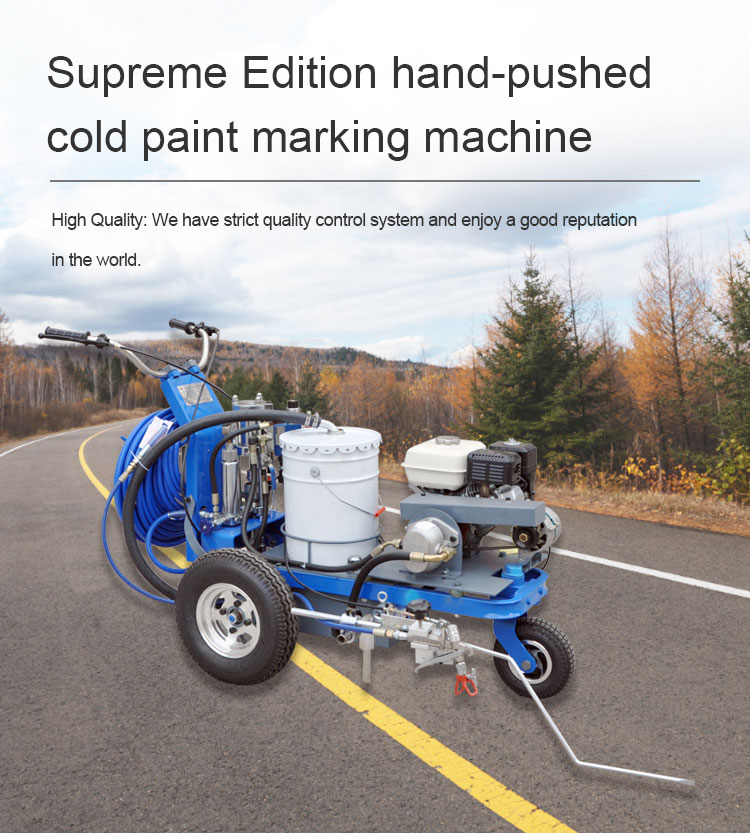

Cold Paint Road Line Marker Spray Road Marking Machine Price

Spraying speed and spraying width are accurate and convenient, performance is stable, quality is excellent, marking line thickness is uniform, edges and corners are even, with low labor intensity, fast and convenient construction.
Engine:
6.5hp Zongshen gasoline engine
Line width range:
8-25cm
Maximum working pressure:
8-16mpa
Maximum scribing speed:
130 m / min
Support nozzle (inch):
1708 417 517
Flow:
3.8l/m
Boundary dimension:
1.12 * 0.79 * 0.95
Weight:
60kg
Engine:
6.5hp Zongshen gasoline engine
Line width range:
8-25cm
Maximum working pressure:
8-16mpa
Maximum scribing speed:
130 m / min
Support nozzle (inch):
1708 417 517
Flow:
3.8l/m
Boundary dimension:
1.12 * 0.79 * 0.95
Weight
70kg
Engine:
6.5hp Longxin 170
Line width range:
3-30cm
Maximum working pressure:
8-16mpa
Maximum scribing speed:
130 m / min
Support nozzle (inch):
217 417 517
Flow:
 4.2l/m
Boundary dimension:
 100 * 80 * 90cm
Weight:
80kg
Engine:
5.5HP
Dimension:
1600*800*1200mm
Weight:
120kg
Thickness of spray:
0.2-0.4mm
Operation mode:
Hydraulic drive
Workpressure:
8-12MPa
Flowofspray:
4.8L/min (Single Gun)

8L/min (Double Gun)
Max Marking Width:
100-300mm (Single Gun)

100-450mm (Double Gun)
Plunger Pump:
Electronic commutation (Single Gun)

Automatic reciprocating reversion (Double Gun)
Package:
1.6CBM, 213KGS, 130*105*116C
Application

Cold spray marking machine

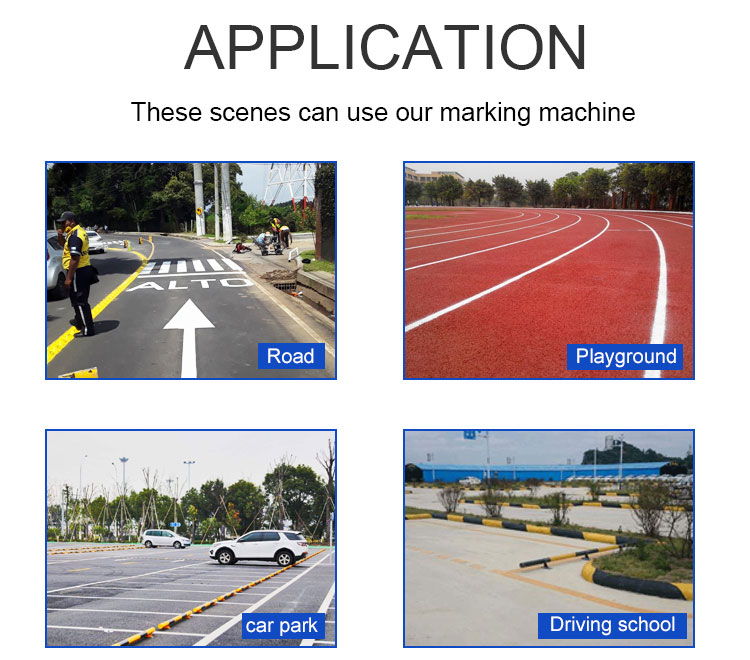

Cold spray marking machine is a special equipment for marking construction at normal temperature. It is mainly used for painting straight line, dotted line, curve, zebra crossing, text, arrow, graphic sign and so on in highway, parking lot, airport, gas station, company factory area, etc.
