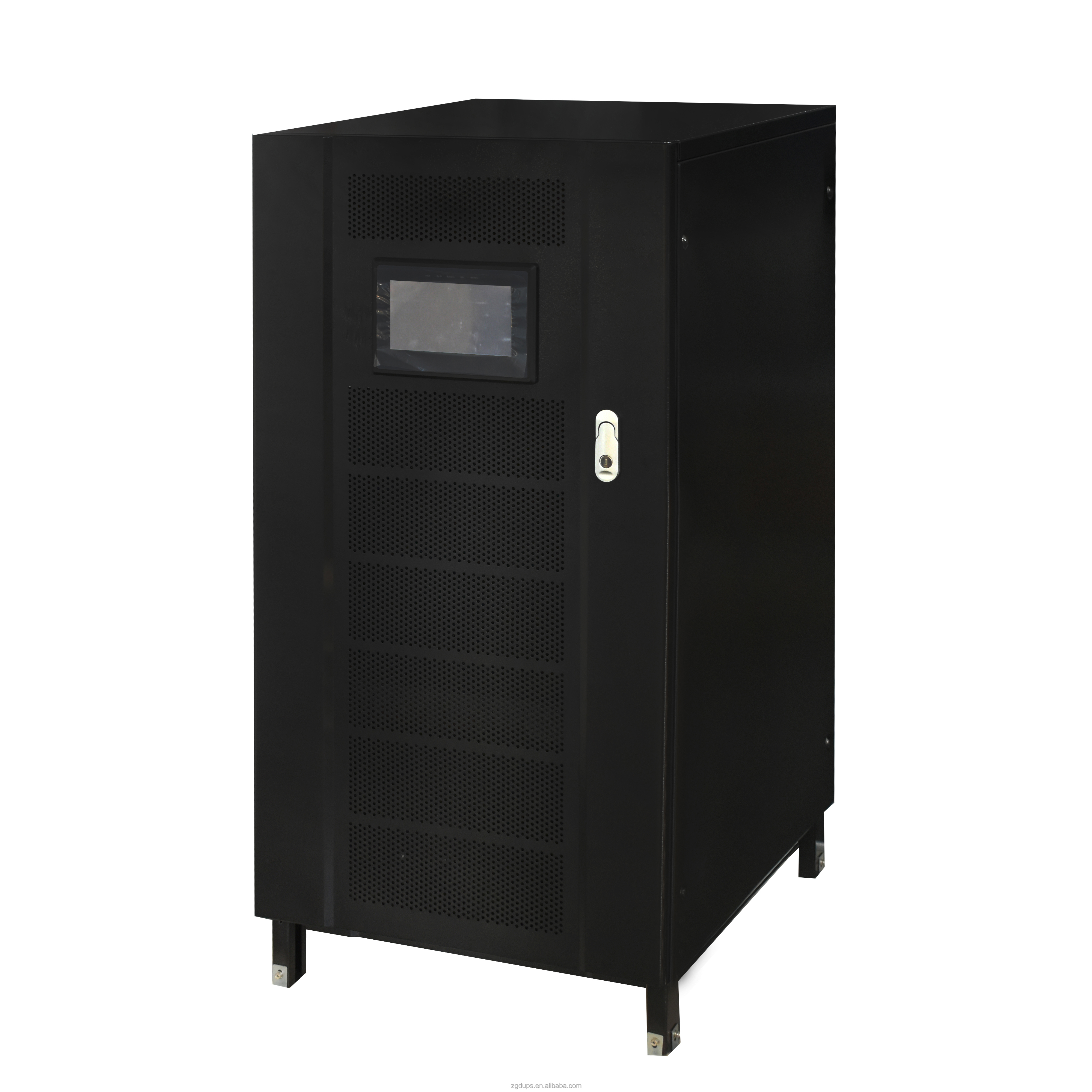

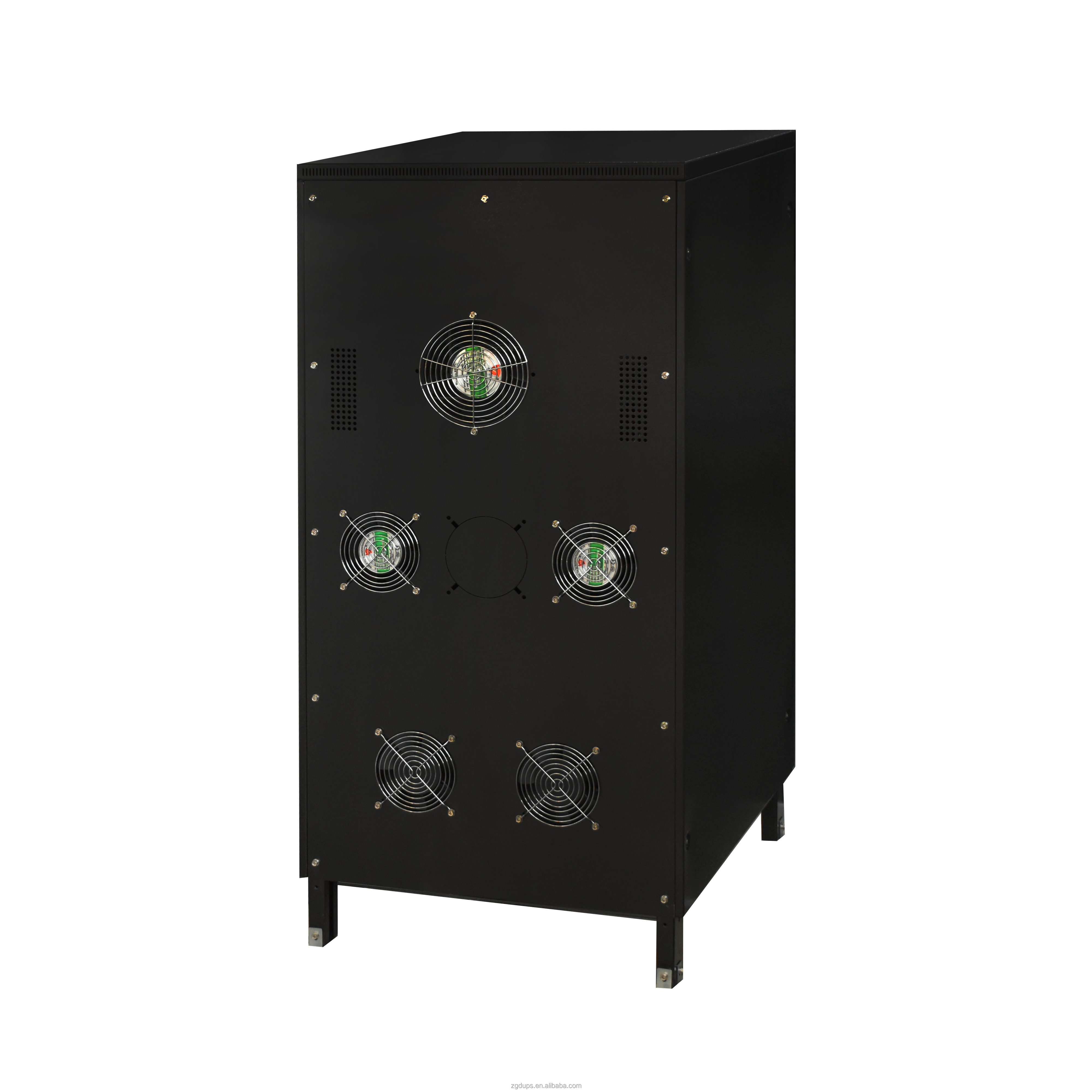

High Quality Low Frequency Industrial UPS 20KVA three Phase 220V 380V Online ups

R82999,00

In stock

Or split into 4x interest-free
payments Learn more
Compare
Model power
ZGD330 10-200KVA
Capacity
10KVA
15KVA
20KVA
30KVA
40KVA
60KVA
80KVA
100KVA
160KVA
8KW
12 KW
16 KW
24 KW
32 KW
48 KW
64 KW
80 KW
128KW
Input
Rated voltage
380/400/415 Vac three-phase
Voltage range
±20%
Frequency range
45-65Hz
Power factor
>0.92with harmonic filter
Current harmonic distortion
<5%with harmonic filter
Soft Start
0-100% in10″
Bypass Input
Rated voltage
380/400/415Vac single-phase
Permitted voltage range
±15%(selectable from ±10% to ±25% from front panel)
Rated frequency
50/60Hz
Standard features
Back Feed protection; split bypass line
Batteries
Type
Maintenance-free lead-acid VRLA AGM / GEL;NICd
Battery voltage
384VDC
Maximum recharge current(A)

0.2×C10

AC ripple voltage
<1%
Inverter Output
Number of phases
3+N
Rated voltage(V)
400Vac
Regulation of the output voltage
380~424Vac phase/neutral(from control panel)
Frequency
50/60Hz configurable
Overload
110% 125% 150% of the rated current for 5h/10’/1′
Frequency stability
±0.05% on mains failure;±2%(selectable from ±1% to ±5%)with mains supply present
Remote signaling
Volt free contacts
Remote controls
EPO and Bypass
Communication
RS232 + romote contacts
Operation temperature
0ºC/ + 40ºC
Relative humidity
<95% non condensing
Product Description
