Product Paramenters
|
Item
|
MC4010
|
|
|
Battery Parameters
|
System Voltage
|
12V/24V automatical recognization
|
|
Max Charging Current
|
40A
|
|
|
MPPT Charging Voltage
|
before boost or equal charging stage
|
|
|
Boost [email protected]℃
|
14.0~14.8V/28.0~29.6V @25℃(default:14.5/29V)
|
|
|
Equal [email protected]℃
|
14.0~15.0V/28.0~30.0V @25℃(default:14.8/29.6V)(Liquid, AGM)
|
|
|
Float [email protected]℃
|
13.0~14.5V/26.0~29.0V @25℃(default:13.7/27.4V)
|
|
|
Overcharge Protect
|
15.8V/31.3V
|
|
|
Charging target voltage
|
10.0~32.0V(Lithium, default: 14.4V)
|
|
|
Low voltage disconnect
|
9.0~30.0V(Lithium, default: 10.6V)
|
|
|
Battery Type
|
Liquid, GEL, AGM, Lithium(default: GEL)
|
|
|
Panel Parameters
|
Max Input Power
|
520W/1040W
|
|
Dusk/Dawn detect voltage
|
8.0V/16.0V
|
|
|
MPPT Tracking Range
|
(Battery Voltage+1V) ~ Voc*0.9
|
|
|
Load Parameters
|
Work mode
|
Always on, Street lamp, User-defined mode
|
|
System Parameters
|
Max tracking efficiency
|
>99.9%
|
|
Max charge conversion
|
98%
|
|
|
Dimensions/Weight
|
196.5*136.6*97.1mm/1.3KG
|
|
|
Communication
|

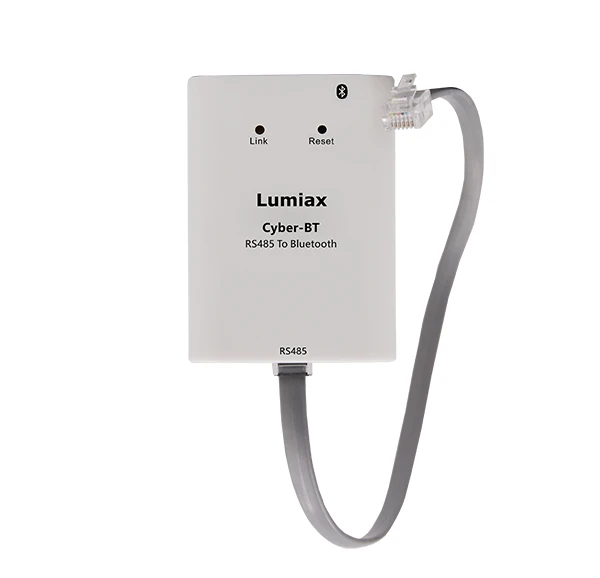

RS485 (RJ11 interface)
|
|
|
Optional
|
IoT、BLE
|
|
|
Grounding
|
Common Negative
|
|
|
Power ternimals
|
6AWG (16mm²)
|
|
|
Protection degree
|
IP32
|
Additional information
| Maximum Current | 40A with Bluetooth add $4.5, 40A |
|---|---|
| Rated Voltage | 12/24V |
