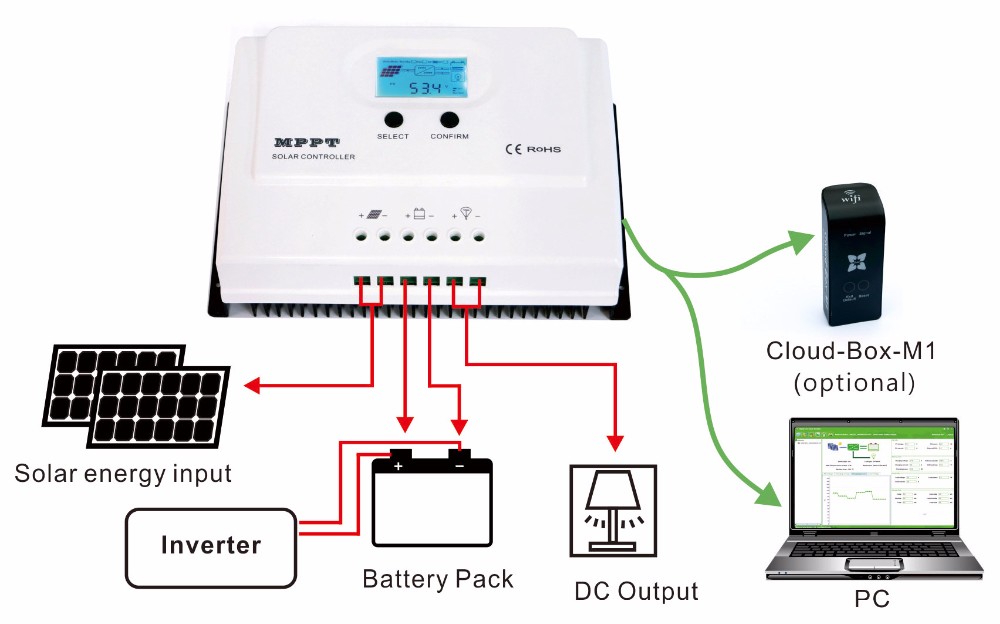

MPPT charge Controller for battery system 12 v 24v

R5499,00

In stock

Or split into 4x interest-free
payments Learn more
Compare
Product Parameter
Wiser3-series
    15A
20A
30A
 40A
50A
Product
category
Controller Properties
MPPT (maximum power point tracking)
MPPT efficiency
≥99.5%
Standby power
0.5W~1.2W
System voltage
Automatic recognition
Heat-dissipating method
Intelligent fan cooling
Input
Characteristics
Max.PV input voltage(VOC)
DC100V
DC150V
Start the charge voltage point
Battery voltage + 3V
Low input voltage protection point
Battery voltage + 2V
Over voltage protection point
DC100V
DC150V
Rated PV power
12V system
195W
260W
390W
520W
650W
24V system
390W
520W
780W
1040W
1300W
Charge Characteristics
Selectable Battery Types
(Default Gel battery)
Sealed lead acid, Gel battery, Flooded
(Other types of the batteries also can be defined)
Charge rated current
15A
20A
30A
40A
50A
Charge Method
3-Stage: constant current(fast charging)-constant voltage-floating charge
LOAD Characteristics
Load voltage
The same as the battery voltage
Load rated current
20A
50A
Load control mode
OnOff mode, PV voltage control mode,
Dual-time control mode, PV + Time control mode
Display &
Communication
Display mode
High-definition LCD segment code backlight display
Communication mode
8-pin RJ45 port/RS485/support PC software monitoring/
support WiFi module to realize APP cloud monitoring
Other Parameters
Protect function
Input-output over under voltage protection, Prevention of connection reverse protection,battery shedding protection etc.
Operation Temperature
-20℃~+50℃
Storage Temperature
-40℃~+75℃
IP(Ingress protection)
IP43
Max. connection size
12mm2
30mm2
Net Weight (kg)
0.83
1.65
Gross Weight (kg)
1
1.95
Product Size(mm)
200*110*68
243*155*80
Pack. Size(mm)
250*145*105
290*190*113
