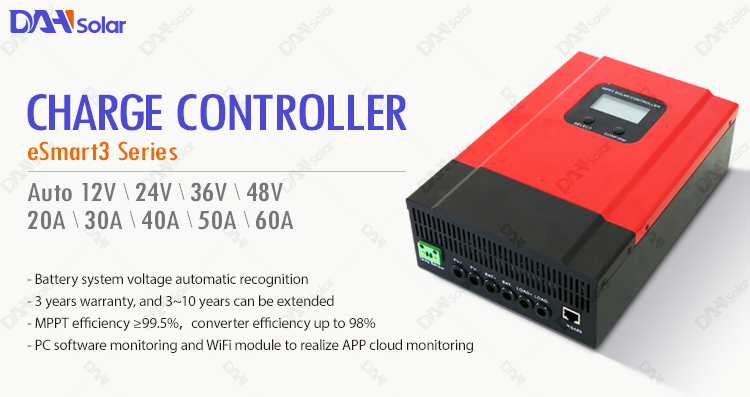

mppt solar charge controller 48V 60A for solar
R11899,00
Or split into 4x interest-free
payments Learn more
payments Learn more
No interest, no fees,
4x instalments over 6 weeks
How it works
Payflex lets you get what you need now, but pay for it over four interest-free instalments. You pay 25% upfront, then three payments of 25% over the following six weeks.
1
Shop Online
and fill your cart
2
Choose Payflex at checkout
3
Get approved and
pay 25% today
with your debit
or credit card
4
Pay the remainder
over 6-weeks.
No interest.
No fees.
mppt solar charge controller 48V 60A for solar
Product Parameter
|
Master series
|
Master
48BL-80A
|
Master
48BL-100A
|
Master
48BH-80A
|
Master
96BH-50A
|
||
|
Product category
|
Controller Properties
|
MPPT (maximum power point tracking)
|
||||
|
MPPT efficiency
|
≥99.5%
|
|||||
|
System voltage
|
Automatic recognition
|
48V
|
96V
|
|||
|
Heat-dissipating method
|
Air cooling
|
|||||
|
Input
Characteristics |
Max.PV input voltage(VOC)
|
DC150V
|
DC300V
|
|||
|
Start the charge voltage point
|
Battery voltage + 3V
|
Battery voltage + 10V
|
||||
|
Low voltage protection
|
Battery voltage + 2V
|
Battery voltage + 5V
|
||||
|
Over voltage protection
|
DC150V
|
DC300V
|
||||
|
Rated PV power
|
12V system
|
1040W
|
1300W
|
–
|
–
|
|
|
24V system
|
2080W
|
2600W
|
–
|
–
|
||
|
36V system
|
3120W
|
3900W
|
–
|
–
|
||
|
48V system
|
4160W
|
5200W
|
4160W
|
–
|
||
|
96V system
|
–
|
–
|
–
|
5200W
|
||
|
Charge Characteristics
|
Selectable Battery Types
(Default Gel battery)
|
Sealed lead acid, Gel battery, Flooded
(Other types of the batteries also can be defined)
|
||||
|
Charge rated current
|
80A
|
100A
|
80A
|
50A
|
||
|
Charge Method
|
3-Stage: constant current(fast charging)-
constant voltage-floating charge
|
|||||
|
LOAD Characteristics
|
Load voltage
|
The same as the battery voltage
|
||||
|
Load rated current
|
80A
|
100A
|
80A
|
50A
|
||
|
Load control mode
|
OnOff mode, PV voltage control mode,
Dual-time control mode, PV + Time control mode
|
|||||
|
Display &
Comm.
|
Display mode
|
LCD (128*64 dots) &backlight
|
||||
|
Communication mode
|
8-pin RJ45 port/RS485/support PC software monitoring/
support WiFi module to realize APP cloud monitoring
|
|||||
|
Other Parameters
|
Protect function
|
Input-output over under voltage protection,
Prevention of connection reverse protection etc.
|
||||
|
Operation Temperature
|
-20℃~+50℃
|
|||||
|
Storage Temperature
|
-40℃~+75℃
|
|||||
|
IP(Ingress protection)
|
IP43
|
|||||
|
Max. connection size
|
50mm2
|
|||||
|
Net Weight (kg)
|
7.1
|
|||||
|
Gross Weight (kg)
|
8.8
|
|||||
|
Product Size(mm)
|
420*280*95
|
|||||
|
Packing Size(mm)
|
510*368*210
|
|||||

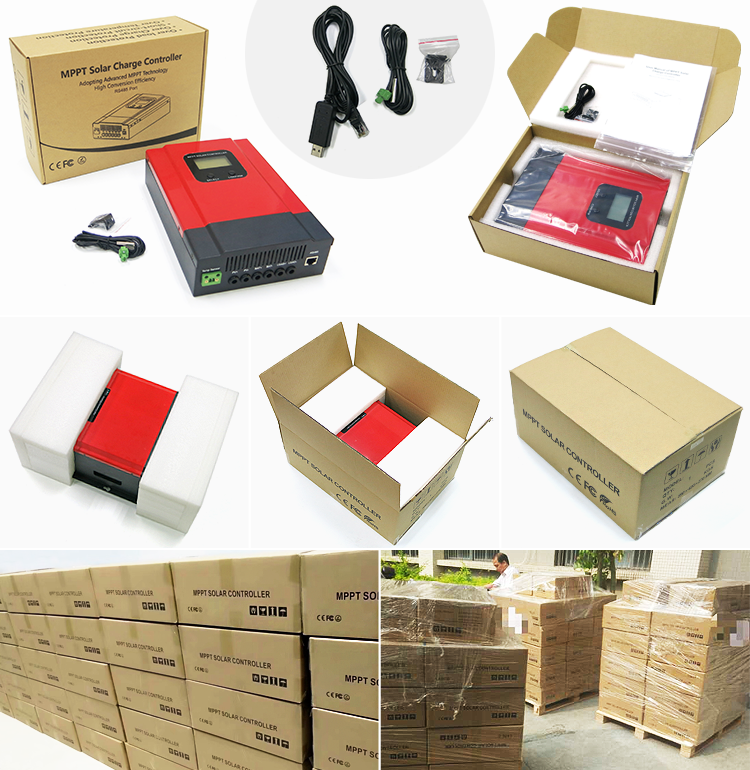

Packing&Delivery
