portable power plant 20kva sound proof electric diesel generator

R179999,00

In stock

Or split into 4x interest-free
payments Learn more
Compare
portable power plant 20kva sound proof electric diesel generator with china yangdong engine 20kw for farm use
All silent type diesel generator are equipped with Lamp,base fuel tank and fuel level gauge,MCCB circuit breaker,maintenance free acid battery etc.
This generator set adopts Perkins diesel engine with low loss,sufficient power and less maintenance performance

If you want 20kw/20kva yangdong generator price, a good quality sutech alternator and SmartGen control panel is recommended
Left elevation
Yangdong engine Parameters
Engine Model
Y490D
Engine manufacturer
Yangdong
Number of Cylinders
4 cylinders
Cylinders arrangement
Vertical in line
Cycle
4 stroke
Aspiration
Natural
Bore×Stroke
90mm x105mm
Displacement
2.67L
Compression ratio
18:1
Standby Power/Speed
24KW/1500rpm
Speed Governor
Mechanical
Cooling System
Forced water cooling cycle
Steady speed droop
≤1%
Fuel Consumption at 100% Load
247.5g/kw.h
Starter Motor
DC12V
Alternator
DC12V
Alternator Parameters
Alternator brand
Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power
20kw
Frequency/speed
60Hz/1800rpm
Exciter type
Single bearing, Brushless, Self-excited
Power factor
0.8
Voltage adjust range
≥5%
Voltage regulation NL-FL
≤±1%
Insulation Grade
H
Protection Grade
IP23
Controller Panel
Brand
Deepsea/ComAp/SmartGen
Function
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.

portable power plant 20kva sound proof electric diesel generator with china yangdong engine 20kw for farm use

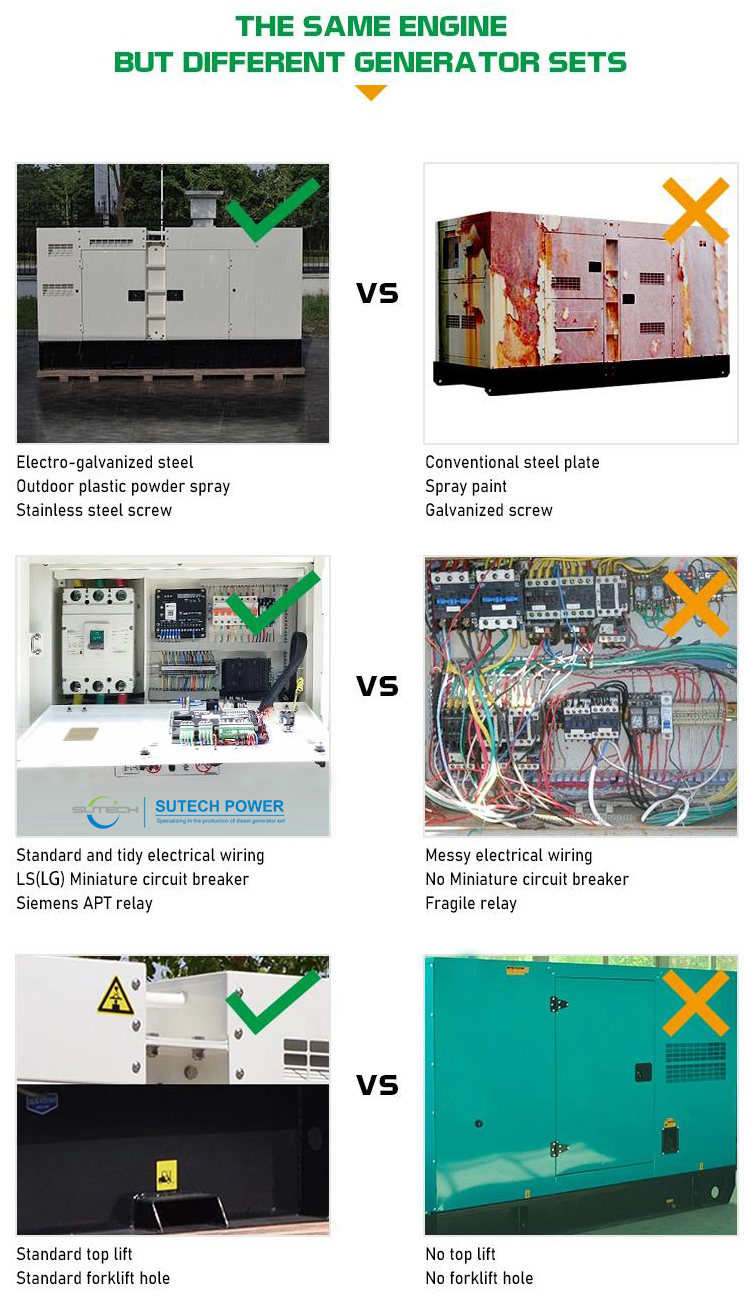

The soundproof canopy is made of Electro-galvanized solid steel.With good performance of Anti-rust
The inside high-density sound-absorbing material can help reduce the noise to level 65 db(A)@7M

Open type

If you have no require for the noise level or nobody around when generator running.We suggest you cost-effective open type.

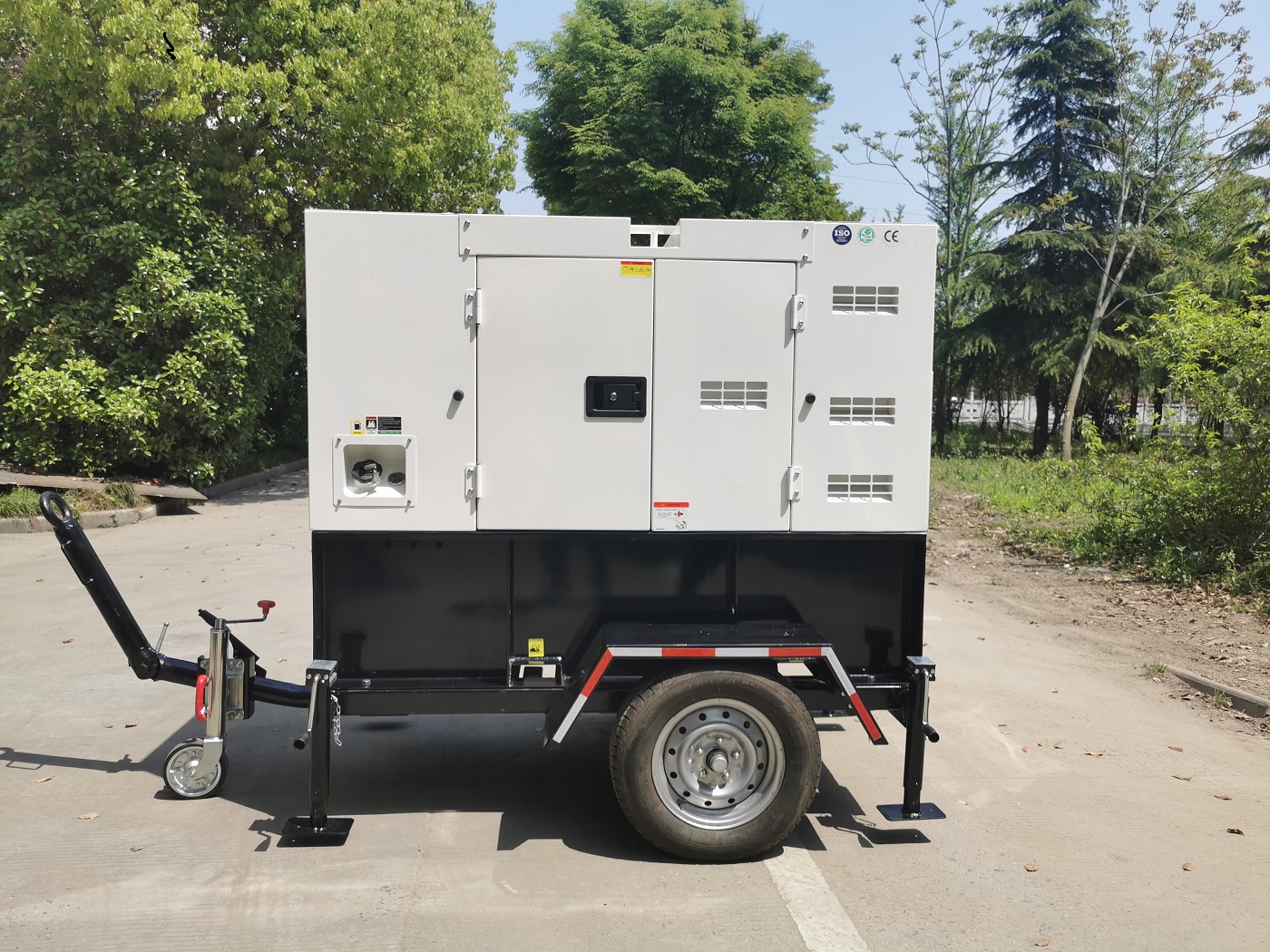

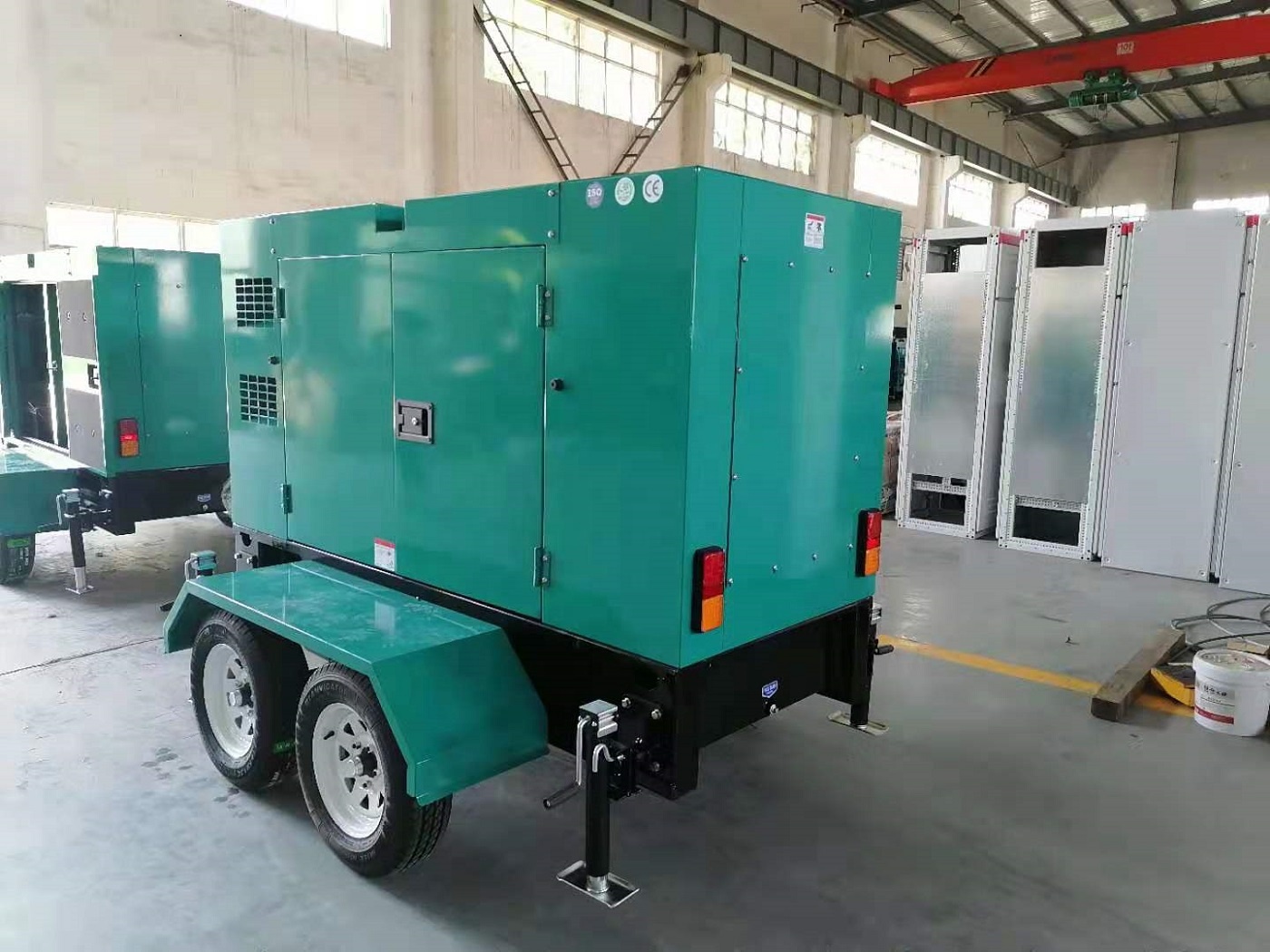

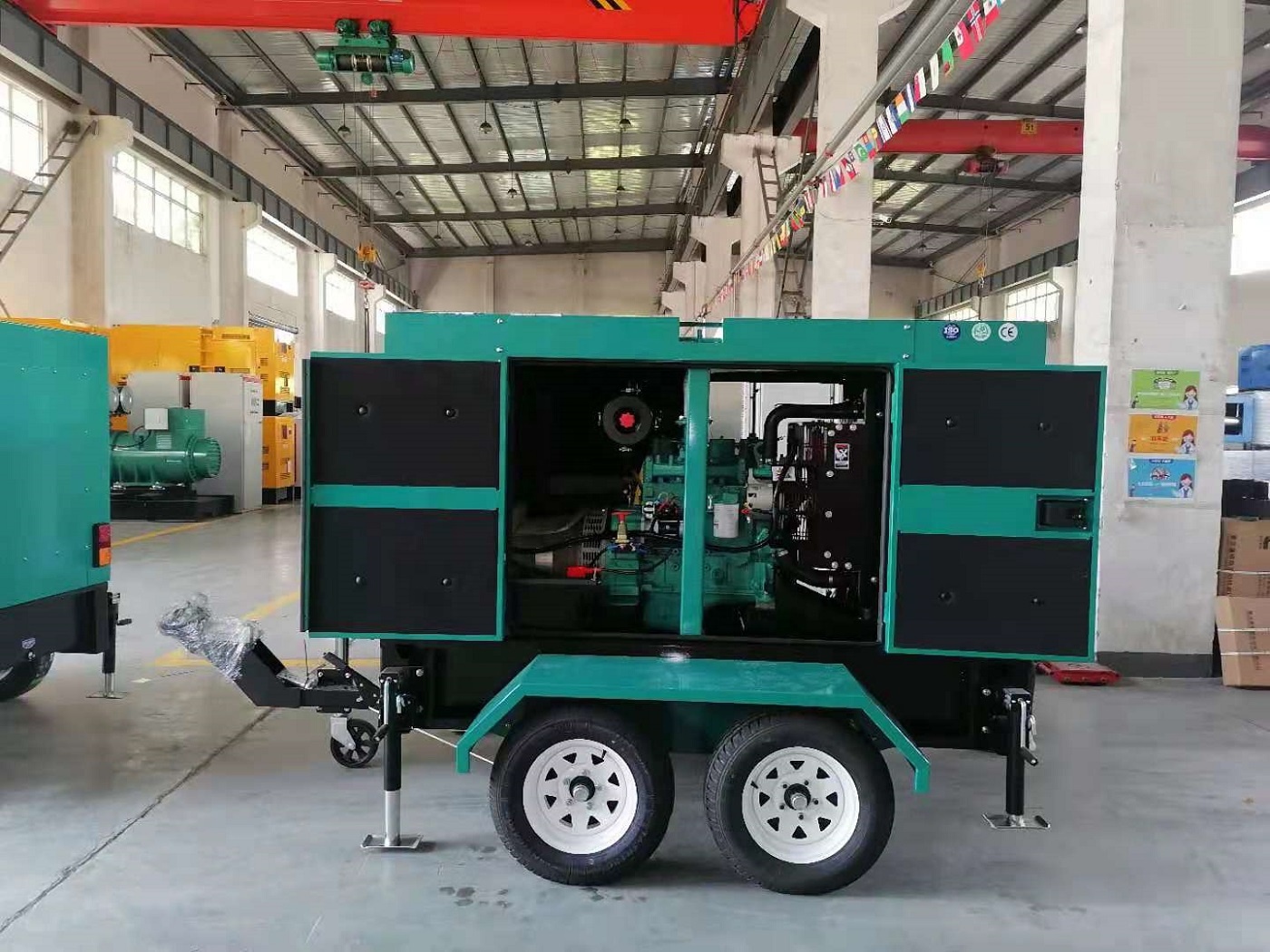

Trailer mobile silent type

The mobile type is equipped with silent canopy and heavy duty movable trailer.The best solutions for your flexible power demand
