SAKO New Solar inverter 5.5kw 48V hybrid with 100A mppt controller dc to ac With LCD display

Out of stock

This product is currently out of stock and unavailable.

Compare
2021 SAKO New Solar inverter 5.5kw 48V hybrid with 100A mppt controller dc to ac With LCD display

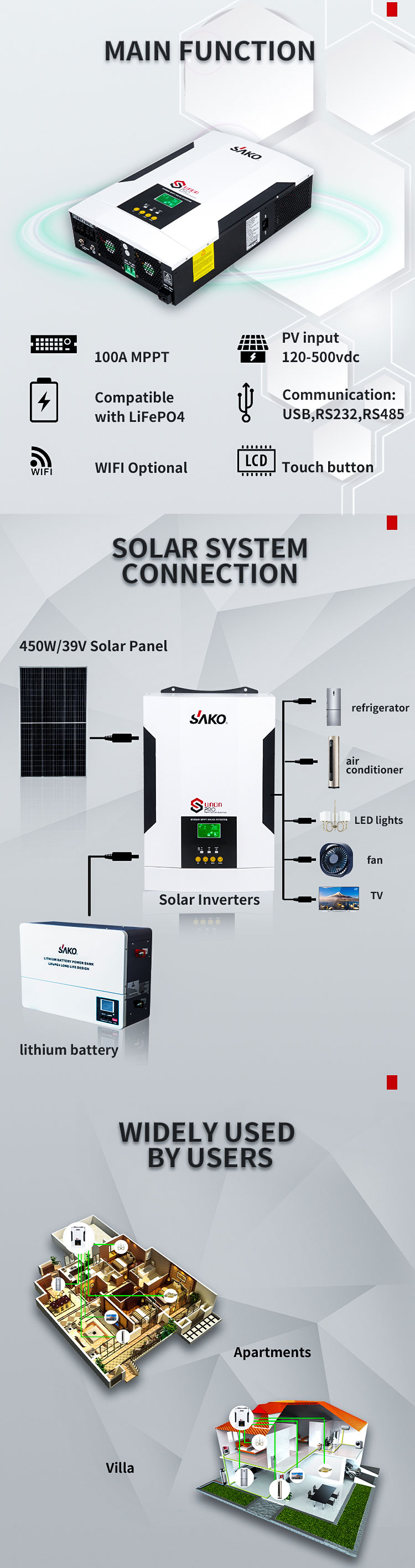

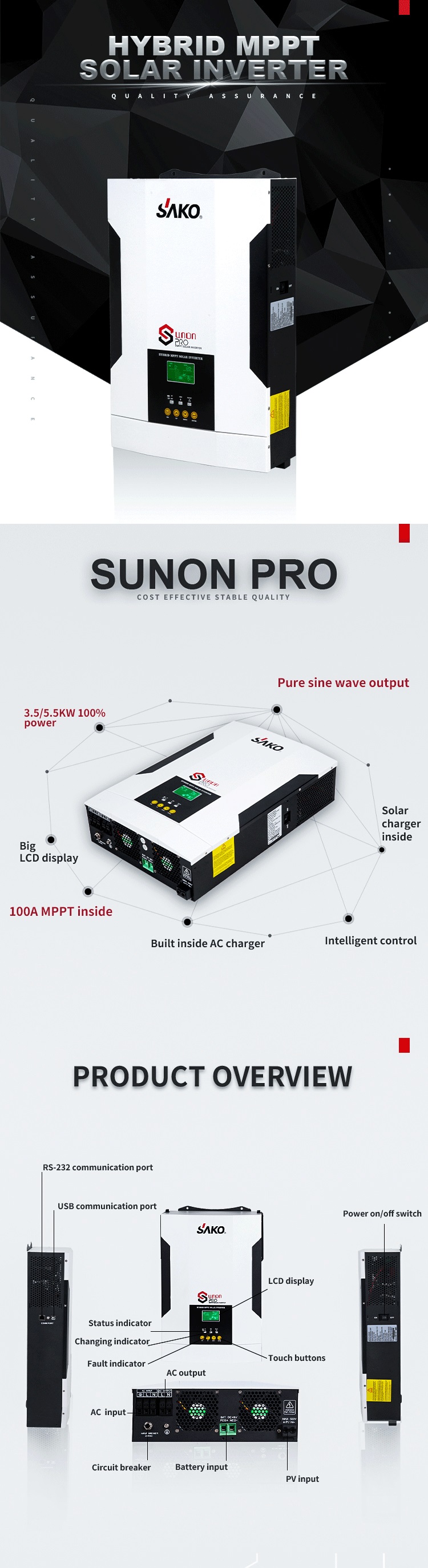

Main Features

1. Pure Sine Wave MPPT Solar Inverter

2. With 100A MPPT Solar Charge Controller built-in
3. With Touch Button on the LCD display
4. Output Power Factor is 1.0
5. It can work with or without a battery
6. With the WIFI function optional
7. With a high PV input voltage range(120-500VDC)
8. Smart battery charger and management for optimized battery performance
9. Cold Start function
10. Auto restart while AC is recovering

Additional Info

Model
SUNON PRO 3.5K
SUNON PRO 5.5K
The rated power
3500VA/3500W
5500VA/5500W
INPUT
Voltage
230VAC
Selectable Voltage Range
170-280VAC (UPS),90-280VAC (Appliances)
Frequnecy Range
50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Model)
230VAC ± 5%
Surge Power
7000VA
11000VA
Power factor
1.0
1.0
Efficiency(Peak)
> 90%
Transfer Time
10ms (UPS), 20ms (Appliances)
Wave form
Pure sine wave
No load current
1.0A
1.1A
BATTERY
Battery voltage
24VDC
48VDC
Low battery alarming voltage
22.0VDC
44.0VDC
Low battery cut off protection voltage
21VDC
42VDC
Low battery recovery voltage
23.0VDC
46.0VDC
Floating Charge Voltage
27VDC
54VDC
Overcharge Protection
32VDC
64VDC
MPPT SOLAR CHARGER & AC CHARGER
Maximum PV Array Power
5000W
6000W
MPPT Range Operation Vol
120-450VDC
120-450VDC
Maximum PV Array Open Circuit Vol.
500VDC
500VDC
Number of MPPT trackers / Max output current
100A
100A
Maxmum AC Charge Current
60A
60A
Maxmum Charge Current
100A
100A
Maxmum Efficiency
98%
BEST PANEL CONFIGUTATION
Maximum PV Array Power
5000W
6000W
Best Panel configuration
300Wp*9pcs*36V(2700Wp)*2Parallel
330Wp*9pcs*36V(2970Wp)*2Parallel
PHYSICAL
Products Dimension, D*W*H(mm)
481mm*313mm*117mm
481mm*313mm*117mm
Packing size, D*W*H(mm)
543mm*394mm*204mm
543mm*394mm*204mm
Net Weight (kgs)
9.8Kg
10.5Kg
G.W. kg
11.2Kg
11.8Kg
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operation Temperature
0℃-50℃
