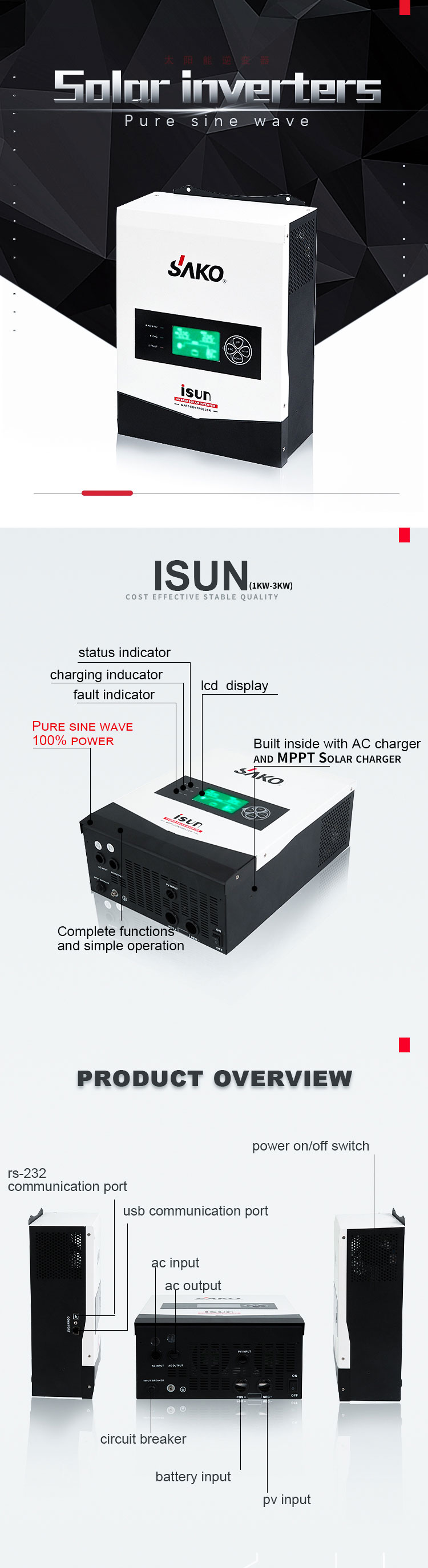

SAKO OFF Grid Hybrid 1000VA 1KW 220Vac 12V Solar Inverter solar charge controller built inside
R6,500
SAKO OFF Grid Off Grid Hybrid MPPT 1000VA/1KW 220Vac 12V Solar Inverter Pure sine wave MPPT solar charge controller built inside

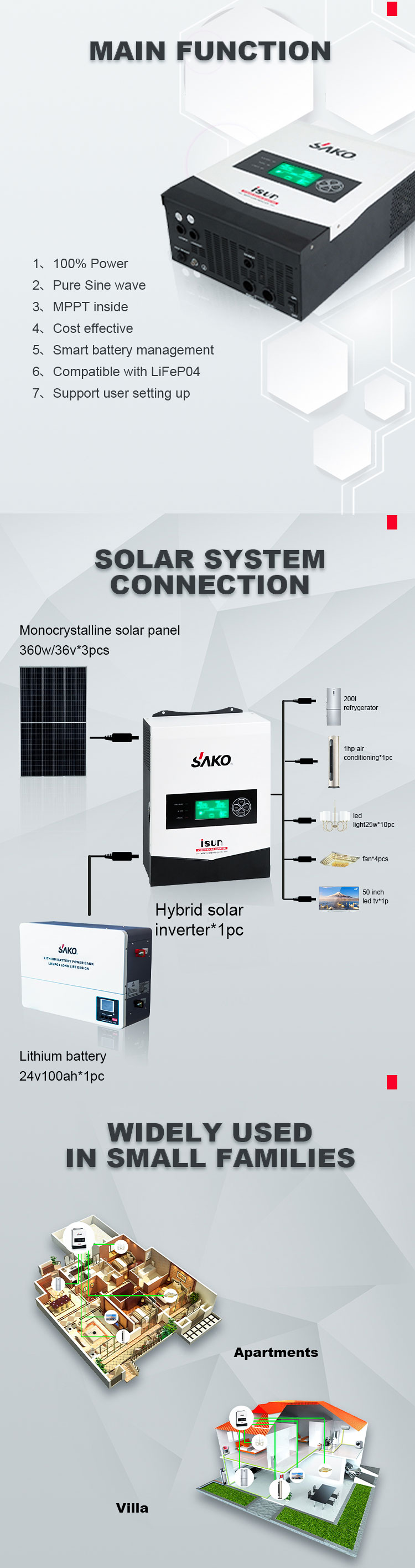

MAIN FEATURES
●MPPT solar charge controller built inside.
●Pure sine wave solar inverter.
●Output Power factor l
●Cost effective, stable quality
●Auto restart while AC is recovering
●Auto restart while AC is recovering
●Overload and short circuit protection
●Configurable AC/Solar input priority via LCD setting
●Compatible with mains voltage or generator power
●Compatible with mains voltage or generator power
●Smart battery charge design for optimized battery performance
●Selectable AC input voltage range for home appliances and personal computers
Additional information
| Application | On-Grid Solar System, Off-Grid Solar System, Hybrid Solar System |
|---|
Additional Info
|
Mode No.
|
ISUN 1KW
|
ISUN 3KW
|
|
|
Line Mode Specifications
|
|||
|
Input Voltage Waveform
|
Sinusoidal (utility or generator)
|
||
|
Nominal Input Voltage
|
230Vac
|
||
|
AC input Range
|
170Vac-280V (Computer) ; 90Vac-280Vac(Home Appliances)
|
||
|
Nominal Input Frequency
|
50Hz / 60Hz (Auto detection)
|
||
|
Efficiency (Line Mode)
|
>95% ( Rated R load, battery full charged )
|
||
|
Transfer Time
|
10ms typical (UPS); 20ms typical (Appliances)
|
||
|
Inverter Mode Specifications
|
|||
|
Rated Output Power
|
1KW
|
3KW
|
|
|
Output Voltage Waveform
|
Pure Sine Wave
|
||
|
Output Voltage Regulation
|
230Vac±5%
|
||
|
Output Frequency
|
50Hz/60Hz
|
||
|
Peak Efficiency
|
93%
|
||
|
Overload Protection
|
[email protected]≥150% load; [email protected]%~150% load
|
||
|
Surge Capacity
|
2* rated power for 5 seconds
|
||
|
Nominal DC Input Voltage
|
12.0Vdc
|
24.0Vdc
|
|
|
Cold Start Voltage
|
11.5Vdc
|
23.0Vdc
|
|
|
Low DC Warning Voltage
|
|||
|
load < 50%
|
11.5Vdc
|
23.0Vdc
|
|
|
load ≧ 50%
|
11.0Vdc
|
22.0Vdc
|
|
|
Low DC Warning Return Voltage
|
|||
|
load < 50%
|
11.8VDC
|
23.5Vdc
|
|
|
load ≧ 50%
|
11.5Vdc
|
23.0Vdc
|
|
|
Low DC Cut-off Voltage
|
|||
|
load < 50%
|
10.7Vdc
|
21.5Vdc
|
|
|
load ≧ 50%
|
10.5Vdc
|
21.0Vdc
|
|
|
High DC Recovery Voltage
|
16.0Vdc
|
32Vdc
|
|
|
High DC Cut-off Voltage
|
16.5Vdc
|
33Vdc
|
|
|
No Load Power Consumption
|
<15W
|
<25W
|
|
|
Charge Mode Specifications
|
|||
|
Utility Charging Mode
|
|||
|
Charging Algorithm
|
3 steps
|
||
|
AC Charging Current (Max)
|
25Amp (INPUT=230Vac)
|
||
|
Voltage
|
14.1Vdc
|
28.2Vdc
|
|
|
Floating Charging Voltage
|
13.5Vdc
|
27Vdc
|
|
|
MPPT Solar Charging Mode
|
|||
|
Charging Current
|
40Amp
|
||
|
System DC Voltage
|
12Vdc
|
24Vdc
|
|
|
Operating Voltage Range
|
18-80VDC
|
36-80Vdc
|
|
|
Max. PV Array Open Circuit Voltage
|
100Vdc
|
||
|
DC Voltage Accuracy
|
±0.3%
|
||
|
Max Charging Current {AC+ solar)
|
65Amp
|
||
|
BEST PANEL CONFIGUTATION
|
|||
|
Max. generated from solar charger
|
40Amp, 500W
|
40Amp, 1000W
|
|
|
Best Panel configuration
|
250Wp*2PCS*30V
|
270Wp*2PCS*30V 2 Parallel
|
|
|
General Specifications
|
|||
|
Safety Certification
|
CE
|
||
|
Operating Temperature Range
|
0℃-50℃
|
||
|
Storage temperature
|
-15℃-60℃
|
||
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
||
|
Product Dimension (D*W*H), mm
|
343mm*250mm*122mm
|
473mm*297mm*107mm
|
|
|
Packing Size (mm)
|
400mm*320mm*190mm
|
534mm*390mm*193mm
|
|
|
Net Weight, kg
|
5.35KG
|
7.84KG
|
|
|
G.W. kg
|
5.85KG
|
9.24KG
|
|
