Soundproof 100KVA 150kva electric 120kva 180kva generator 200kva diesel silent generator
R280,800


Control System

Manual Controller
– A current, Voltage, Frequency simulative meters;
– An oil pressure, a water thermometer and indicator lights;
– 4 additional protection functions are provided optional;
– Start/ stop manually.
– An oil pressure, a water thermometer and indicator lights;
– 4 additional protection functions are provided optional;
– Start/ stop manually.

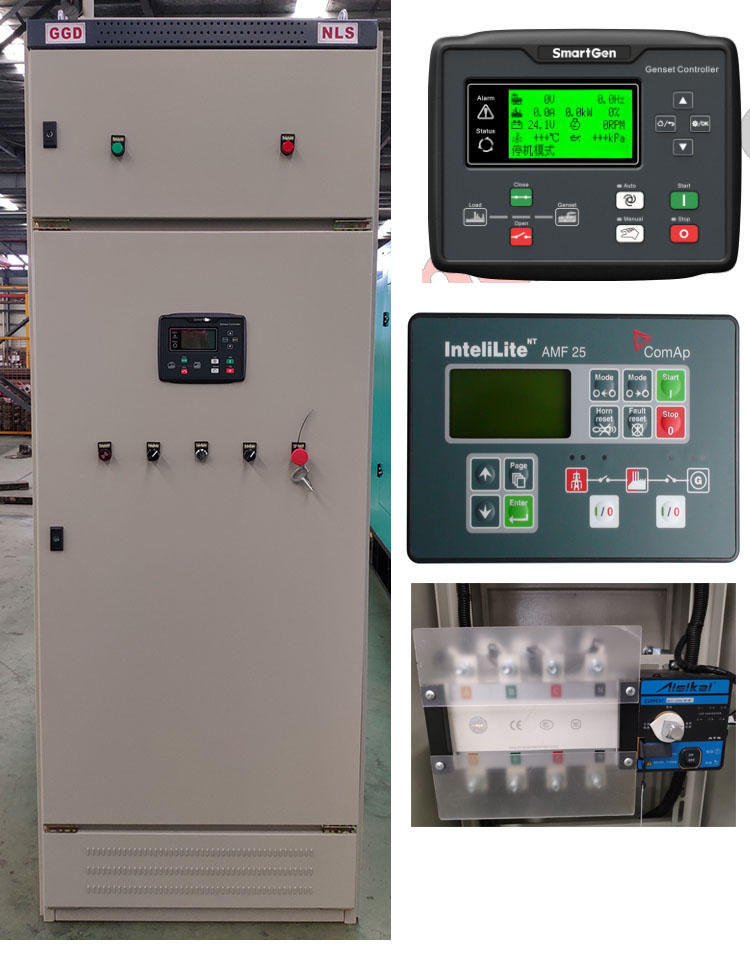

Automatic controller
Brand: Smartgen, ComAp or Deepsea
– Control with AMF module;
– Static battery charger;
– Emergency stop push button;
– Basic protection function, etc.
– Static battery charger;
– Emergency stop push button;
– Basic protection function, etc.

ATS Control System(Suyang, Aisikai, Schneider,ABB)
– Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine BottProvide start signal to automatic control system;
– Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running
automatically;.
– Changeover between the mains supply and power generated by gen-set;
– Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running
automatically;.
– Changeover between the mains supply and power generated by gen-set;

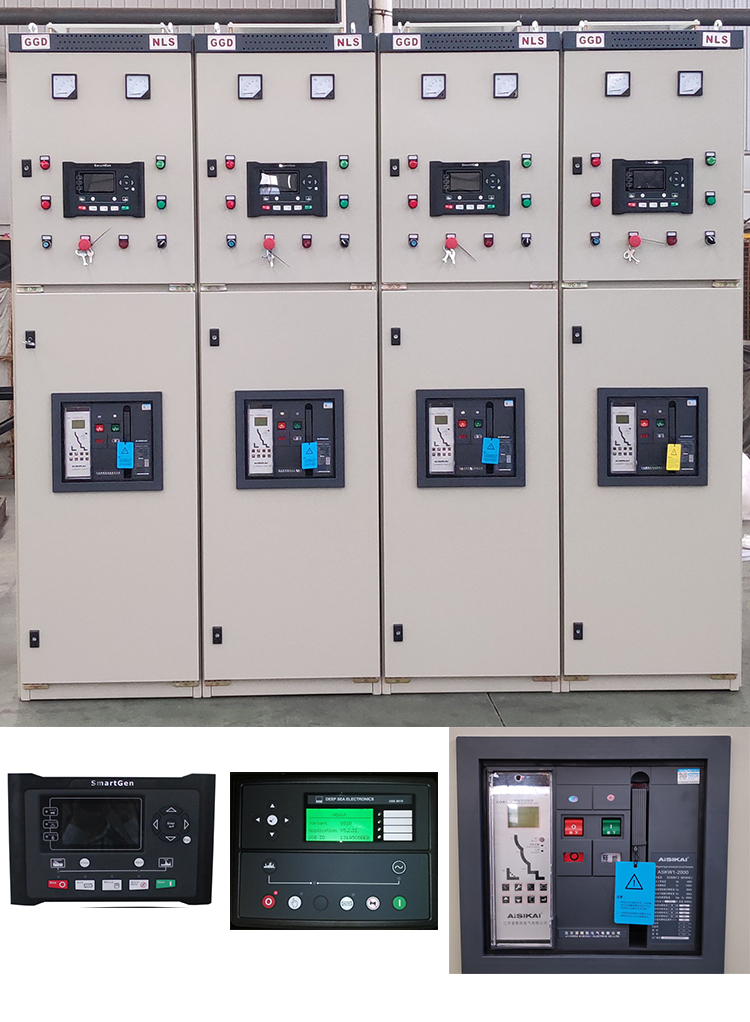

Synchronous Parallel Controller
Brand: Smartgen, ComAp or Deepsea
– Manual/auto parallel system generators;
– Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
– IP55 waterproofness level;
– Can control engine heater, cooler and fuel pump;
– Metal fixing clips enable perfect in high temperature environment, etc..
– Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
– IP55 waterproofness level;
– Can control engine heater, cooler and fuel pump;
– Metal fixing clips enable perfect in high temperature environment, etc..

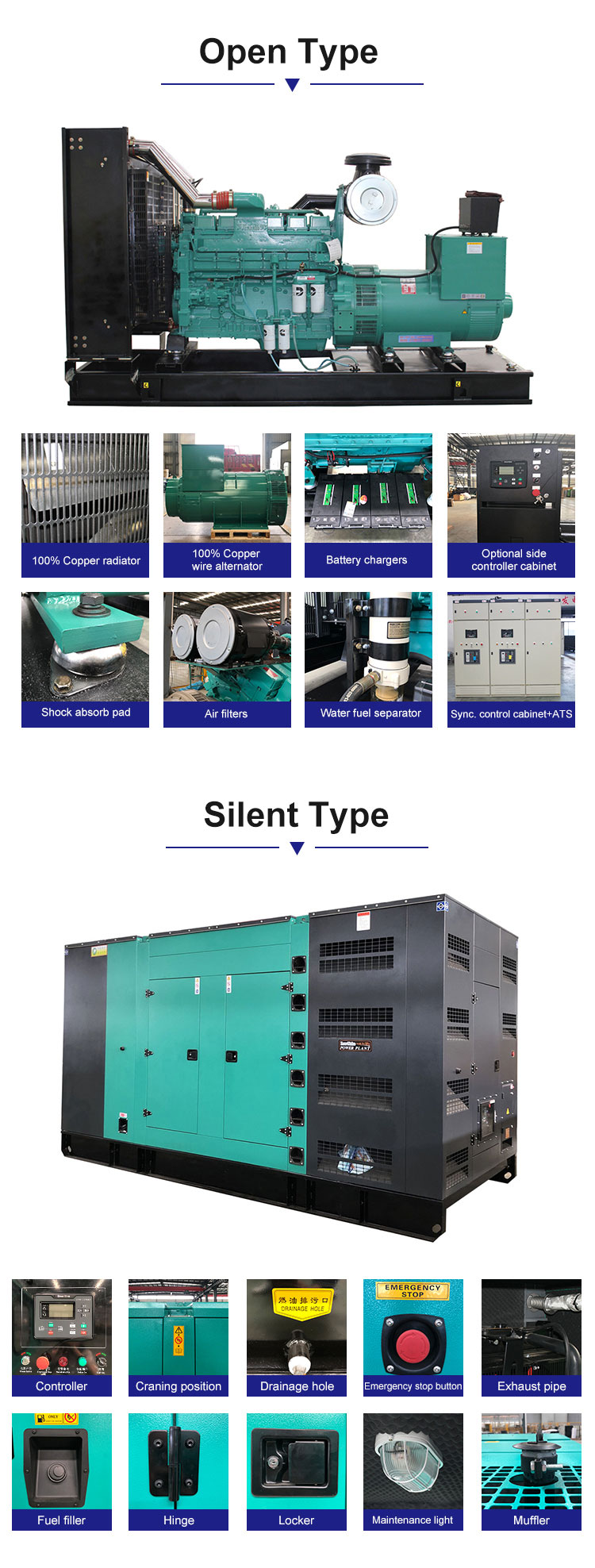

Silent Canopy Details
-Compact structure with high-strength chassis;
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch
-40-50℃Radiator;
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user

Additional information
Rated Power : | 160KW/200kva |
---|---|
Output Type : | AC Three Phase, AC Single Phase |
Additional Info
                               Diesel Generator Set Data Sheet
|
||||
Generator Model
|
GF160DS
|
|||
Power
|
160kw/200kva
|
|||
Rated Voltage
|
400/230V
|
|||
Frequency
|
50HZ
|
|||
Power Factor
|
0.8(Lagging)
|
|||
Dimension(L*W*H)
|
2800*1050*1500mm
|
|||
Weight
|
1700kg
|
|||
                                     Diesel Engine Data Sheet
|
||||
Brand
|
Doosan
|
|||
Model
|
P086TI
|
|||
Number of Cylinder
|
6
|
|||
Speed
|
1500RPM
|
|||
Cycle
|
Four Stroke
|
|||
Cooling Method
|
Water Cooling
|
|||
Bore*Stroke
|
111*139mm
|
|||
Speed Governor
|
Electronic
|
|||
Power
|
199kw
|
|||
Lubrication oil Capacity
|
15.6L
|
|||
Fuel Consumption
|
≤42L/H
|
|||
Starting Method
|
24V Electrical Starting
|
|||
                                        Alternator Data Sheet
|
||||
Brand
|
NENJO
|
|||
Model
|
HJI-160
|
|||
Power
|
160kw/200kva
|
|||
Connecting Type
|
3 Phase and 4 Wires
|
|||
Number of Bearing
|
Single
|
|||
Protection Grade
|
IP23
|
|||
Insulation Class
|
H
|
|||
Exciter Type
|
Brushless, Self-excited, AVR Controller
|
|||
Altitude
|
≤1000M
|
|||
                                             Controller
|
||||
Optional Controller Brand
|
Smartgen/Deepsea/ComAp etc.
|
