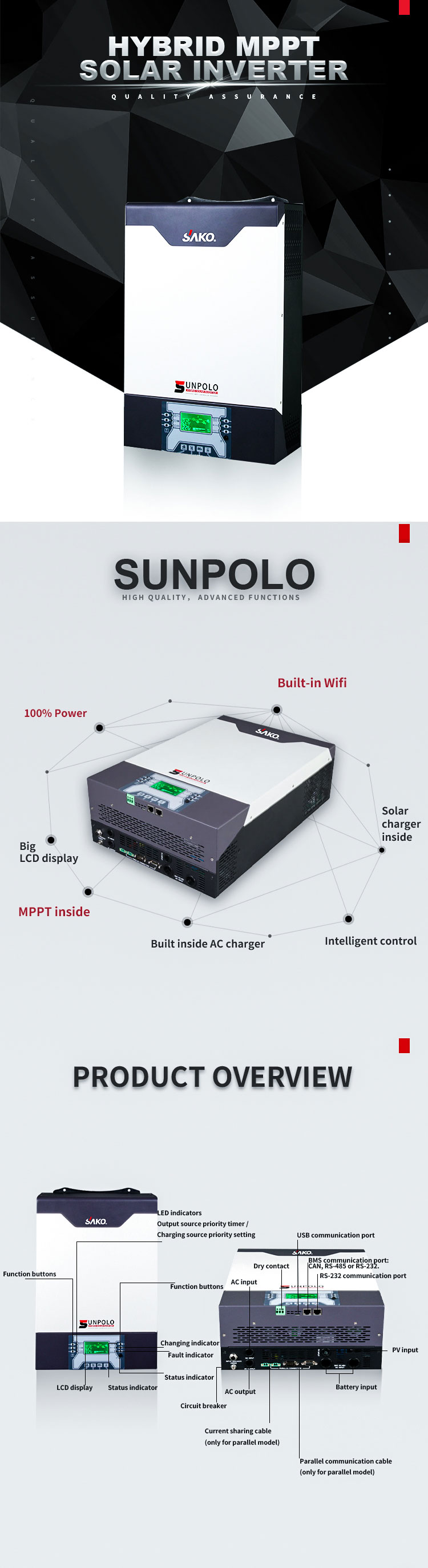

SUNPOLO 5KV 48V MPPT Hybrid off on grid Solar power Inverter pure sine wave for solar power system for home and government

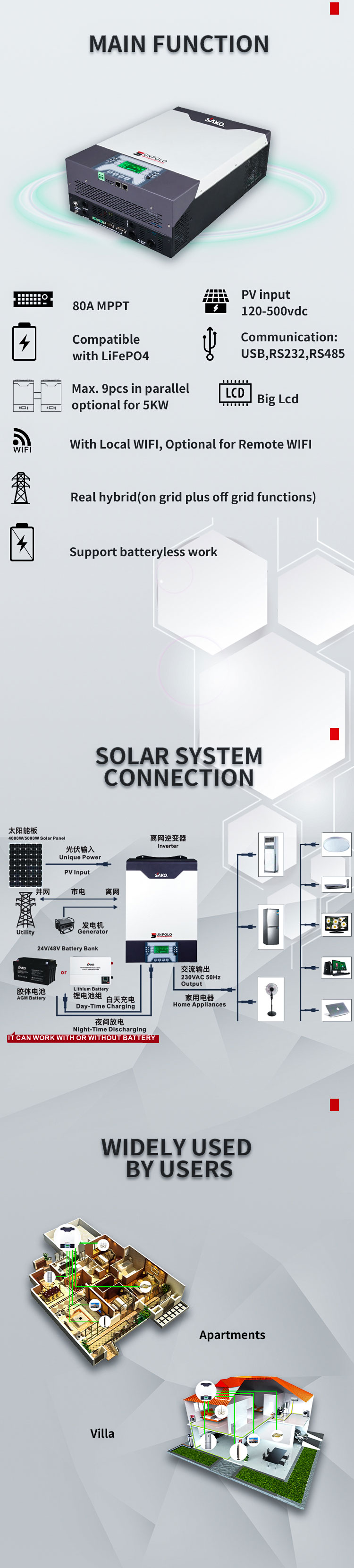

MAIN FEATURES
1. With MPPT solar charger controller built inside, Max PV input power reaches 5000W.
2. Wide PV input range (Up to 450Vdc), can
work without battery during the daytime.
work without battery during the daytime.
3. Built-in wifi for mobile monitoring (requires App)
4. Optional for parallel operation up to 9 units for 5KW
5. Selectable charging current based on applications
6. Configurable AC/Solar input priority via LCD setting
7. Smart battery charger and management for optimized battery performance.Compatible with LI Ion, LiFePo4 and etc.
7. Smart battery charger and management for optimized battery performance.Compatible with LI Ion, LiFePo4 and etc.
8. 5KW Support Self-consumption and feed into the grid. Export excess PV power to the grid via setting
9. Auto restart while AC is recovering, auto charge and switch, unattended operation
10. Various communication such as WIFI/RS485/RS232 are optional.
12. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self-power consumption
13. All around protection functions: Overload/short circuit protection/high voltage/low battery voltage/high temerature,etc.
14. 5KW Optional for self-consumption and feeding into the grid by setting.
Additional information
| Application | On-Grid Solar System, Off-Grid Solar System, Hybrid Solar System |
|---|---|
| Output Power | 5000W |
Additional Info
|
Rated Power
|
SUNPOLO 3KW
|
SUNPOLO 5KW
|
|
INPUT
|
||
|
Voltage
|
230VAC
|
|
|
Voltage Range
|
176-280 VAC at 100% load
|
|
|
110-280 VAC at 50% load
|
||
|
Frequency Range
|
50Hz/60Hz(Auto-sensing)
|
|
|
OUTPUT
|
||
|
AC Voltage Regulation(Batt.Mode)
|
230VAC±3%
|
|
|
Surge Power
|
6400VA for 5 sec
|
10400VA for 5 sec
|
|
Efficiency(Peak)
|
>95% ( Rated R load, battery full charged
|
|
|
Transfer Time
|
10ms typical (UPS)
|
|
|
20ms typical (Appliances)
|
||
|
Waveform
|
Pure sine wave
|
|
|
BATTERY
|
||
|
Battery Voltage
|
24 VDC
|
48 VDC
|
|
Floating Charge Voltage
|
27 VDC
|
54 VDC
|
|
Overcharge Protection
|
32 VDC
|
64 VDC
|
|
SOLAR CHARGER & AC CHARGER
|
||
|
Solar Charger Type
|
MPPT
|
|
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
|
|
Maximum PV Array Power
|
4000W
|
5000W
|
|
MPP [email protected] Operating Voltage
|
120-450VDC
|
120-450VDC
|
|
Maxmum Solar Charge Current
|
80A
|
80A
|
|
Maximum AC Charge Current
|
60A
|
|
|
PHYSICAL
|
||
|
Products Dimension,D X W X H (mm)
|
492*303*129
|
456*303*147
|
|
Product Net Weight(kgs)
|
10
|
12
|
|
Packing Dimension,D X W X H (mm)
|
570*395*215, 1PC/CTN
|
530*377*217,1PC/CTN
|
|
Product Net Weight(kgs)
|
11.5
|
13.5
|
|
Communication Interface
|
Removable OTG USB/RS232/RS458/BLE/Dry-contact,BMS interface,
|
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Operating Temperature
|
-10℃ to 50℃
|
|
|
Storage Temperature
|
-15℃ to 60℃
|
|
|
*Product specifications are subject to change without further notice
|
||
